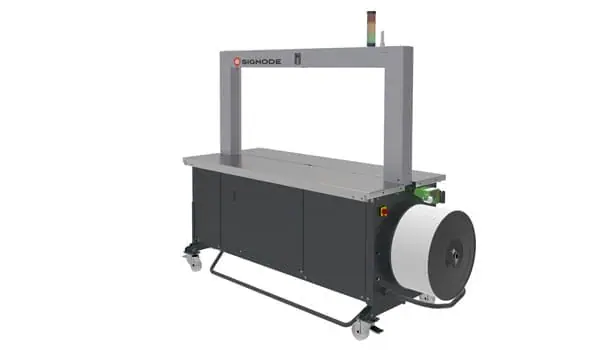

A Signode Sig-N Strapping Machine image

SIG-N

Semiautomatic Strapping Machine

The SIG-N strapping machine is perfect for offline corrugated operations, offering swift bundling and unmatched adaptability. With a range of innovative options to cater to diverse production needs, the SIG-N stands out as a dependable and efficient strapping solution.

Additional Information

Features

Unique chute system with an energy-saving drive motor
Direct access technology providing easy access to the strap
Segmented strap chute with a lifetime warranty on the flaps
Non-driven roller bed conveyors and pneumatic press bar
Automatic strap re-feed and auto strap discharge minimizes downtime.

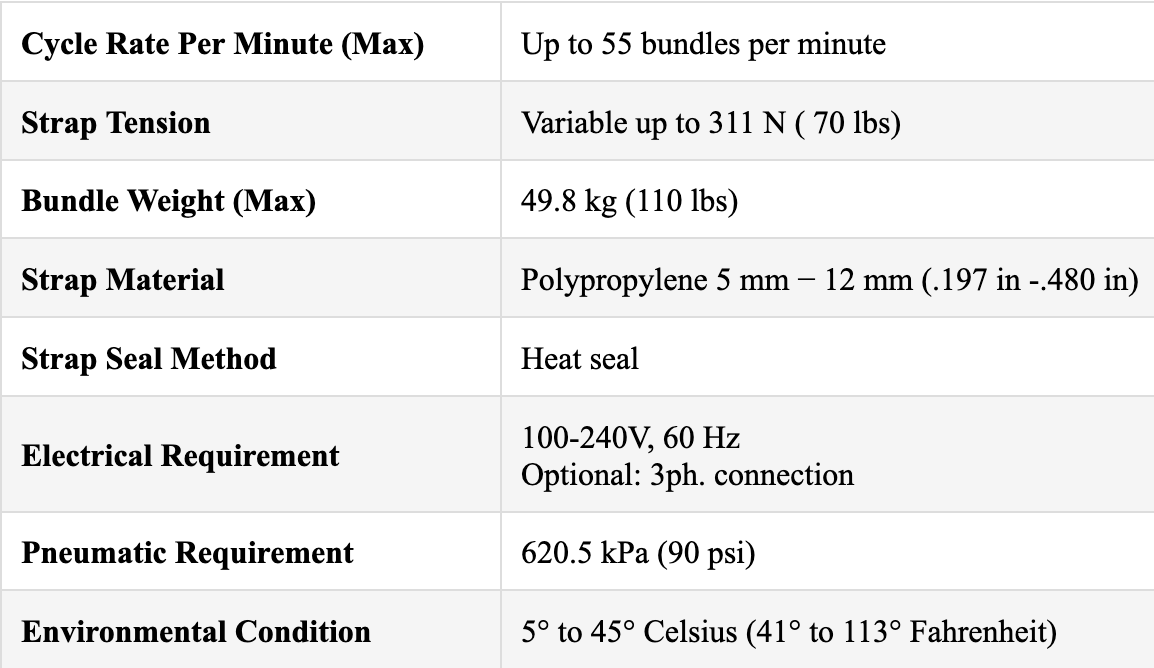

Cycle Rate Per Minute (Max):

Up to 55 bundles per minute

Strap Tension:

Variable up to 311 N (70 lbs)

Bundle Weight (Max):

49.8 kg (110 lbs)

Strap Material:

Polypropylene 5 mm – 12 mm (.197 in –.480 in)

Strap Seal Method:

Heat seal

Electrical Requirement:

100-240V, 60 Hz

Optional:

3ph. connection

Pneumatic Requirement:

620.5 kPa (90 psi)

Environmental Condition:

5° to 45° Celsius (41° to 113° Fahrenheit)
