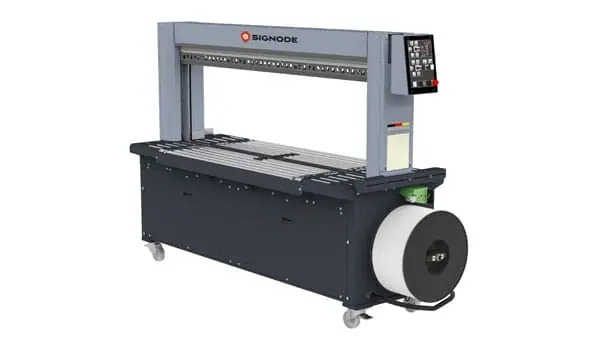

SIG-C AUTOMATIC CORRUGATED BUNDLER

Strapping Machine

The SIG-C automatic corrugated bundler provides high-speed bundling capabilities for flexo-folder corrugated products. The SIG-C is manufactured with intuitive features to ensure continuous strapping and maximum uptime.

Features
  • Spare magnetic strap dispenser, parts kit, and industrial interlock kit included
  • Auto re-feed that can re-feed the strap up to 3 times
  • End-of-strap monitoring with auto ejection
  • Extra long strap coils with nearly 42% more strap coupled with quick-change dispenser
  • Equipped with patented easy access strap guides that require no tools for entry.

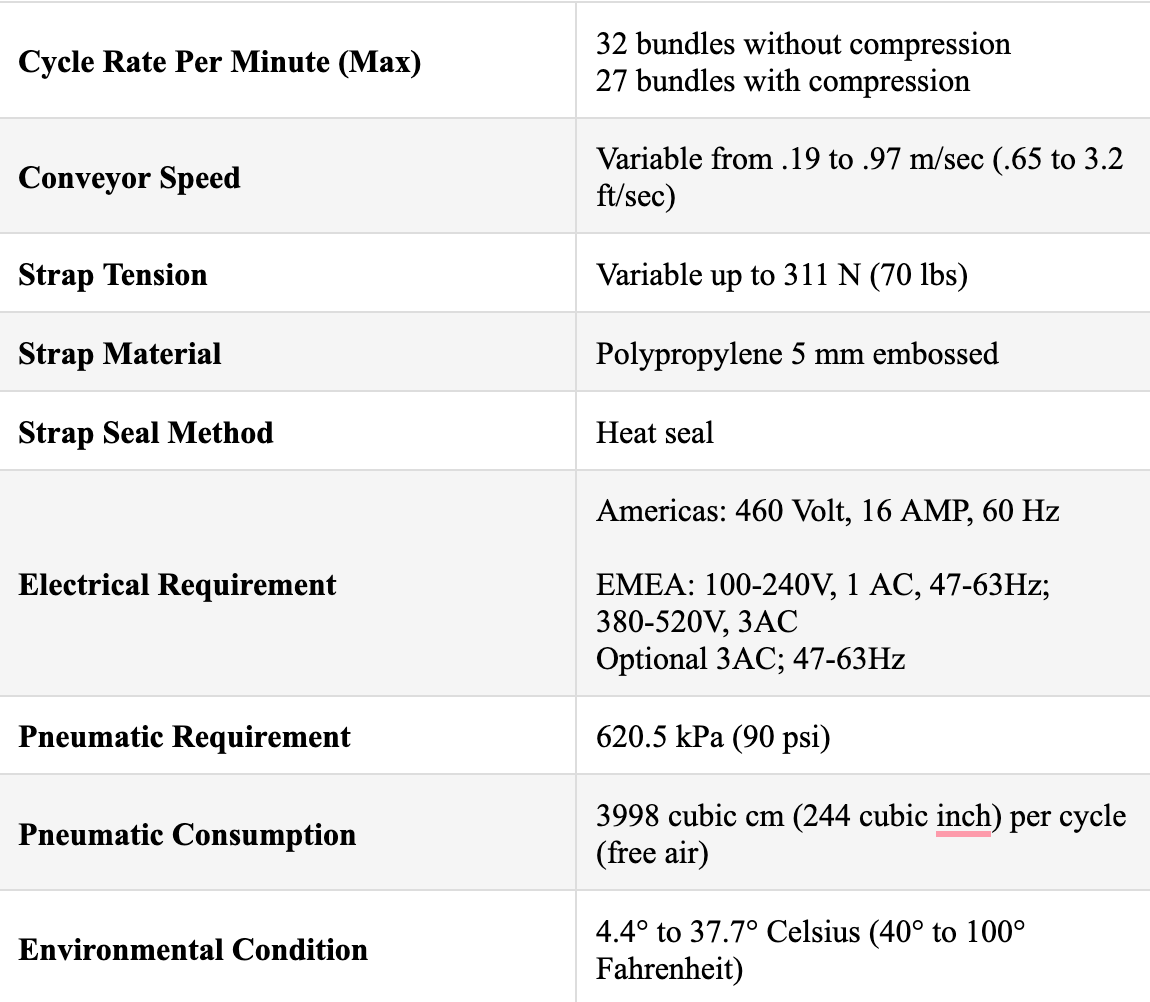

Cycle Rate Per Minute (Max):
  • 32 bundles without compression / 27 bundles with compression
Conveyor Speed:
  • Variable from .19 to .97 m/sec (.65 to 3.2 ft/sec)
Strap Tension:
  • Variable up to 311 N (70 lbs)
Strap Material:
  • Polypropylene 5 mm embossed
Strap Seal Method:
  • Heat seal
Electrical Requirement: Americas:
  • 460 Volt, 16 AMP, 60 Hz / EMEA: 100–240V, 1 AC, 47–63Hz; 380–520V, 3AC / Optional 3AC; 47–63Hz
Pneumatic Requirement:
  • 620.5 kPa (90 psi)
Pneumatic Consumption:
  • 3998 cubic cm (244 cubic inch) per cycle (free air)
Environmental Condition:
  • 4.4° to 37.7° Celsius (40° to 100° Fahrenheit)

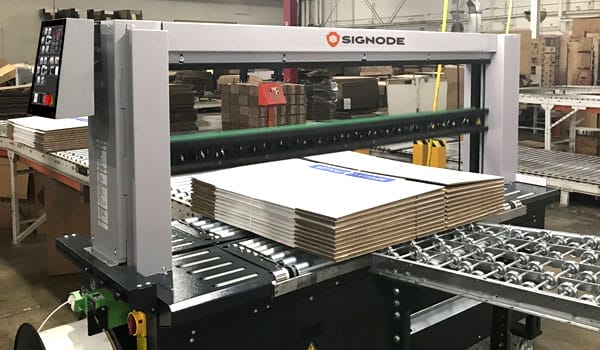

SIG-C Automatic Corrugated Bundler
