EB35A SERIES AUTOMATIC BUNDLER

EASTEY’s Automatic Bundler EB35A EB50A EB70A EB80A

EASTEY’s automatic bundler consistently delivers reliable performance with quality features typically found in more expensive machines. Designed for effective sealing of polyethylene film, these bundlers are built to meet all your needs.

Constructed with 1/4” cold rolled steel frames, EASTEY’s bundlers are engineered to endure the rigors of daily use in demanding bundling applications. Each machine uses two rolls of single-wound film mounted on the same side, with upper and lower power film unwinds for easy operation. Discover why EASTEY has been a leader in the shrink packaging industry for over 25 years.

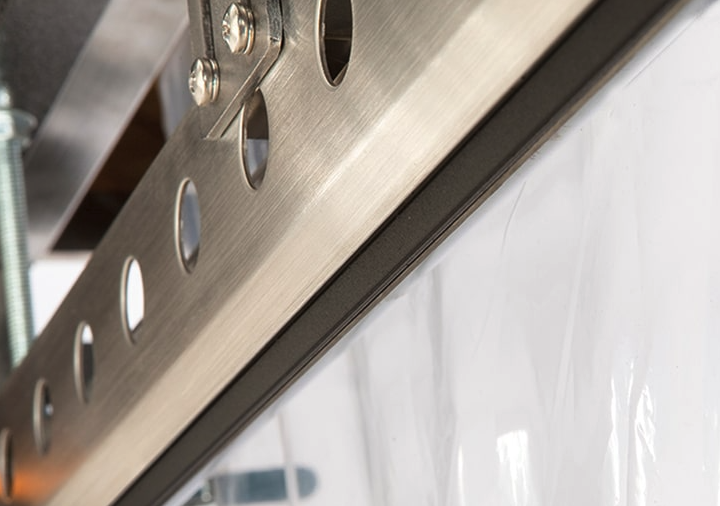

  • 35”, 50”, 70″, and 80” wide hot knife seal system

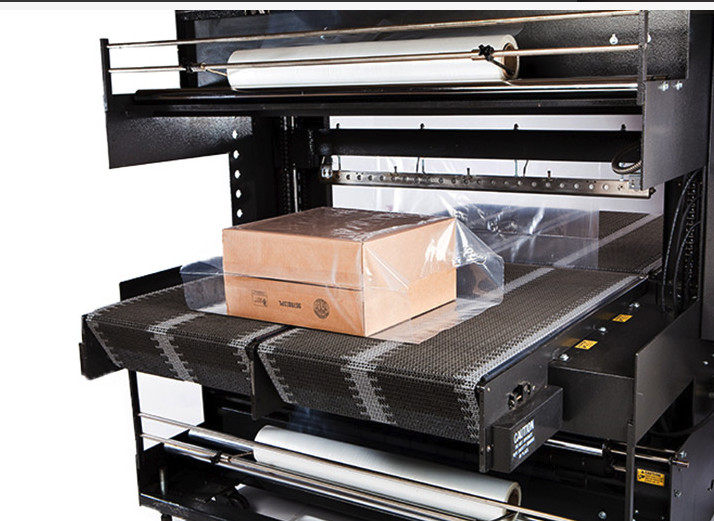

  • Upper and lower powered film unwind for smooth feed of film
  • Film loading from left or right side

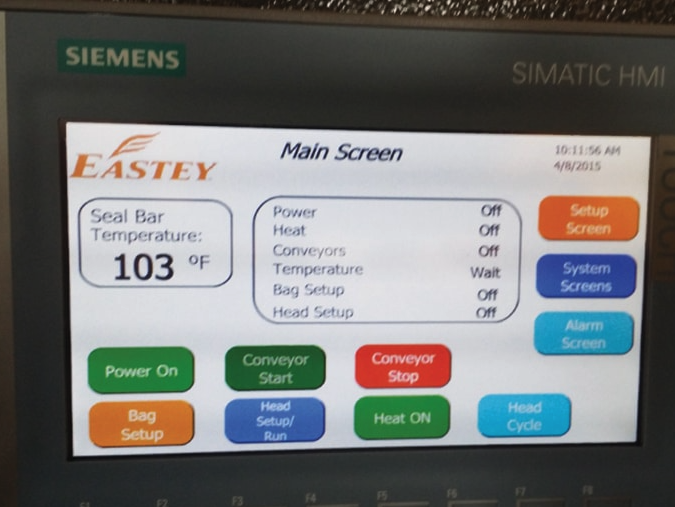

  • Color PLC touchscreen operation for easy adjustments
  • Self tracking conveyor belt and product indexing
  • Flexibility for fully automatic or single product operation
  • All-welded main frame from 1/4” cold rolled steel
  • Bases supplied with locking casters for easy transport
  • Leveling legs to provide study base
  • Durable custom two-part epoxy finish resists scratching
  • Exit conveyor transfers the package into a recommended Eastey shrink bundling tunnel to produce a very tight and secure package.

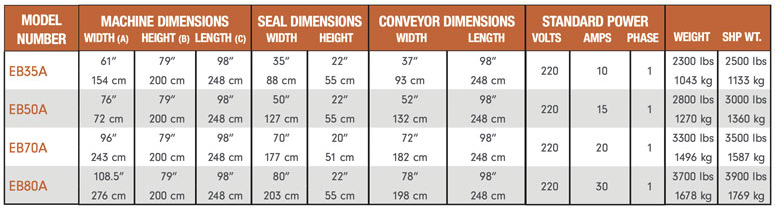

EB35A

  • Machine Dimensions: 61″ (154 cm) W × 79″ (200 cm) H × 98″ (248 cm) L
  • Seal Dimensions: 35″ (88 cm) W × 22″ (55 cm) H
  • Conveyor Dimensions: 37″ (93 cm) W × 98″ (248 cm) L
  • Standard Power: 220V / 10 Amps / 1 Phase
  • Weight: 2,300 lbs (1,043 kg)
  • Shipping Weight: 2,500 lbs (1,133 kg)

EB50A

  • Machine Dimensions: 72″ (200 cm) W × 79″ (200 cm) H × 98″ (248 cm) L
  • Seal Dimensions: 50″ (127 cm) W × 22″ (55 cm) H
  • Conveyor Dimensions: 52″ (132 cm) W × 98″ (248 cm) L
  • Standard Power: 220V / 15 Amps / 1 Phase
  • Weight: 2,800 lbs (1,270 kg)
  • Shipping Weight: 3,000 lbs (1,360 kg)

EB70A

  • Machine Dimensions: 96″ (243 cm) W × 79″ (200 cm) H × 98″ (248 cm) L
  • Seal Dimensions: 70″ (177 cm) W × 20″ (51 cm) H
  • Conveyor Dimensions: 72″ (182 cm) W × 98″ (248 cm) L
  • Standard Power: 220V / 20 Amps / 1 Phase
  • Weight: 3,300 lbs (1,496 kg)
  • Shipping Weight: 3,500 lbs (1,587 kg)

EB80A

  • Machine Dimensions: 108.5″ (276 cm) W × 79″ (200 cm) H × 98″ (248 cm) L
  • Seal Dimensions: 80″ (203 cm) W × 22″ (55 cm) H
  • Conveyor Dimensions: 78″ (198 cm) W × 98″ (248 cm) L
  • Standard Power: 220V / 30 Amps / 1 Phase
  • Weight: 3,700 lbs (1,678 kg)
  • Shipping Weight: 3,900 lbs (1,769 kg)
