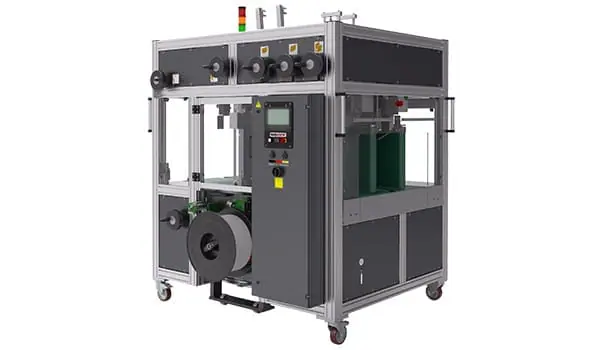

Image of a SIG-CORR

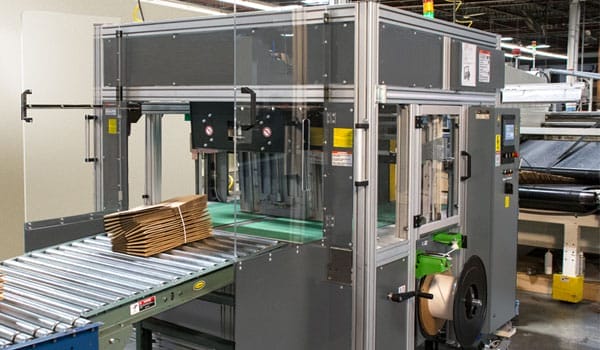

A SIG-CORR in use on the assembly line

SIG-CORR

Squaring and Strapping for Specialty-Glued Cartons

The SIG-CORR automatic squaring bundler provides high-speed bundling capabilities for specialty-glued items, including lock bottom, trays and lids, tubes and straight line cartons. Up to 50% faster in some specialty folder gluer applications, the SIG-CORR is manufactured with intuitive features to ensure continuous strapping and maximum uptime.

Additional Information

Features

Includes bundle rear alignment pusher, second bundle stop front squaring plate, and a fully automatic format adjustment
Stainless steel infeed packing table and stacking guide plate
Spare quick-change strap dispenser and a spare parts kit included
Signal lights to indicate low strap to end-of-strap monitoring with auto ejection
Strap coils with 42% more strap per coil reduce changeover downtime.

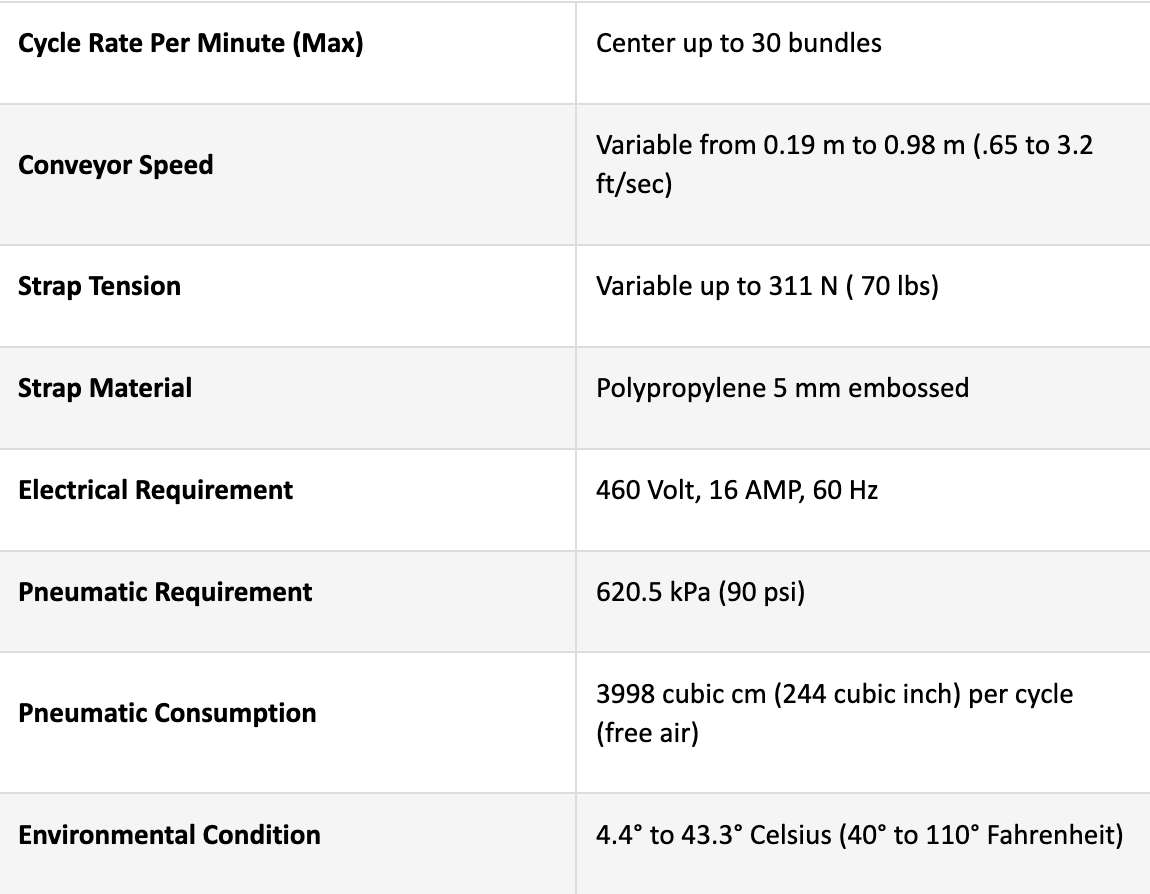

Cycle Rate Per Minute (Max):

Center up to 30 bundles

Conveyor Speed:

Variable from 0.19 m to 0.98 m (.65 to 3.2 ft/sec)

Strap Tension:

Variable up to 311 N (70 lbs)

Strap Material:

Polypropylene 5 mm embossed

Electrical Requirement:

460 Volt, 16 AMP, 60 Hz

Pneumatic Requirement:

620.5 kPa (90 psi)

Pneumatic Consumption:

3998 cubic cm (244 cubic inch) per cycle (free air)

Environmental Condition:

4.4° to 43.3° Celsius (40° to 110° Fahrenheit)
